1. Celestron NexImage 10  Cableholder

NexImage 10

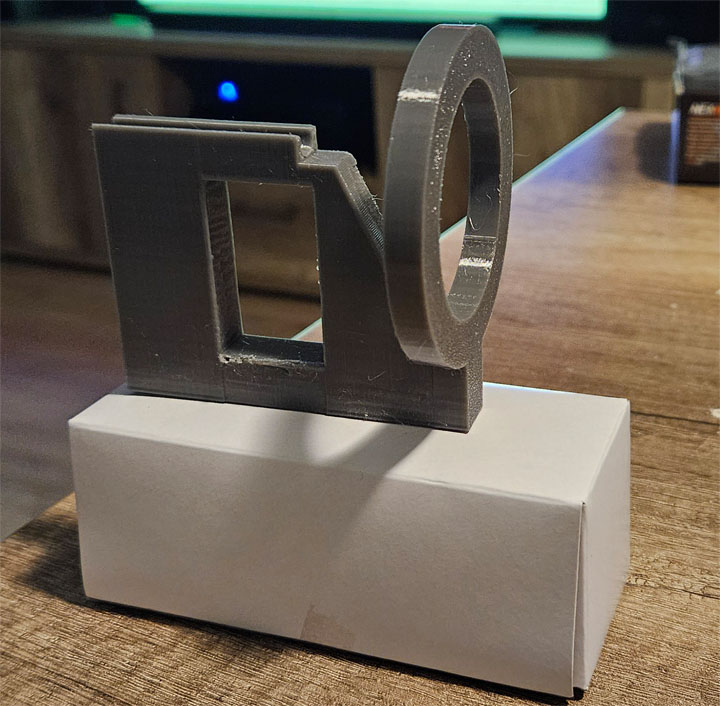

3D Model

The NexImage 10 Camera comes with a very stiff cable that can damage the Connector-Plugs after some Times. This Model keeping the Cable straight on the Camera-Plug, so the Forces by turning the Telescope will be minimized for the Camera. There is a Clamp Area where you can push the Cable into the 3D Model. Print it out like it is coming to your Slicer Software, i prefer PETG Filament for this Model.

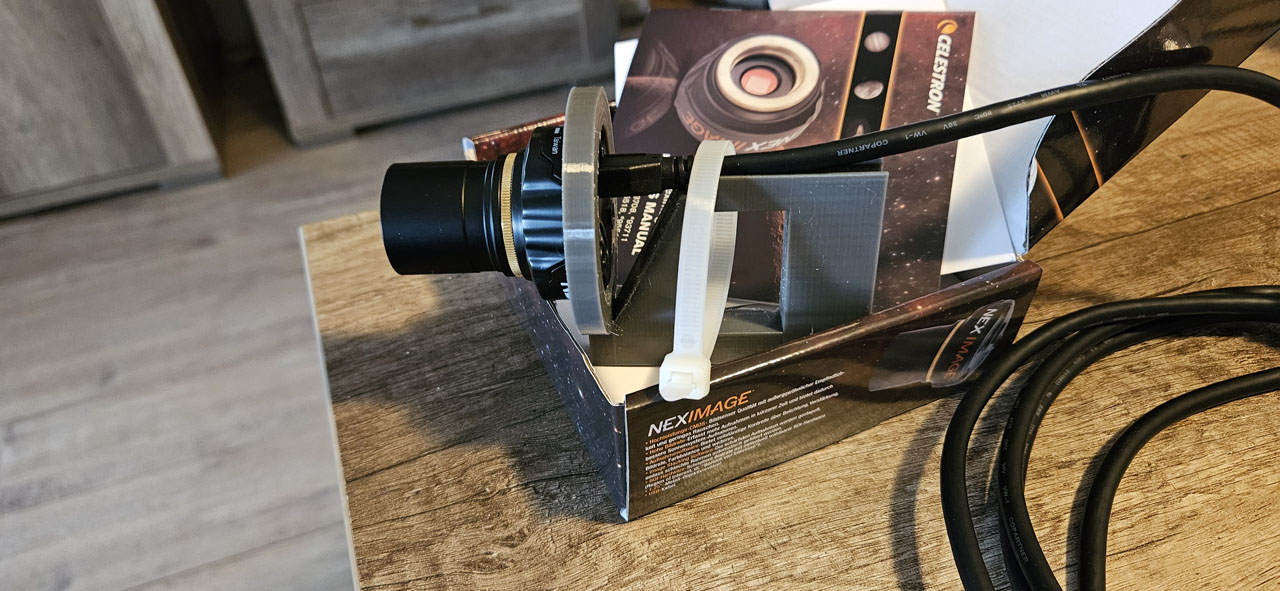

Mounting: push the Cable through the 3D-Model Ring, connect the Cable to the Camera and push the Camera back into the 3D-Model Ring, push the Cable into the Clamp-Area, use an additional Cable-Tie if needed.

Download 3D Model (STL Format)
